Document Zones are used to define specific areas on a document that can be used with the Auto Zoom and Zone OCR features in the Quillix Web Client.
The Auto Zoom feature of Quillix enables the automatic zooming of an image for the field with the input focus based on the zone defined for the field in the Quillix Process Manager. This facilitates improved indexer focus and accuracy during manual indexing. In order to enable the Auto Zoom feature in the Quillix Client, a zone must be defined for each field using the Quillix Process Manager's Zone Definition Tool, and the Auto Zoom behavior must be checked in the field's properties dialog.
The Zone OCR feature of Quillix provides client side OCR of documents based on zones defined for fields in the Quillix Process Manager. In order to enable the Zone OCR feature in the Quillix Client, a zone must be defined for each desired field using the Quillix Process Manager's Zone Definition Tool, and the OCR behavior must be checked in the field's properties dialog.
Zones are defined for a Document Type from the Zone Definition Tool. To access the Zone Definition Tool, click on the Define Zones button on the Document Type Toolbar in the Process Manager.
Figure 1 - Define Zones Button on Fields Toolbar
In order to begin defining Zones for a Document Type, a sample image should be loaded into the Zone Definition Tool using by clicking the Load Image Button on the Zone Definition Toolbar.

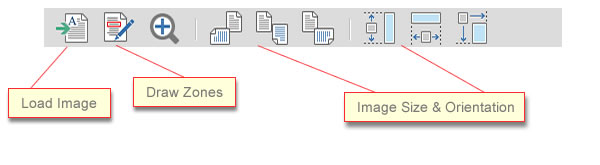

Figure 2 - Zone Definition Toolbar
With the sample image loaded, select a field from the field list, and begin drawing zones using the Draw Zones tool. The defined zone for each field is displayed with a yellow highlight. Select the Zone Behaviors (Zoom and/or OCR) for each field and click OK to save the Zone Settings. Auto Zoom is used by the Zoom To Zone feature in the Quillix Client. Similarly, OCR is linked to the Zonal OCR Tool in the Quillix Client. Please refer to the User Reference documentation for more information.

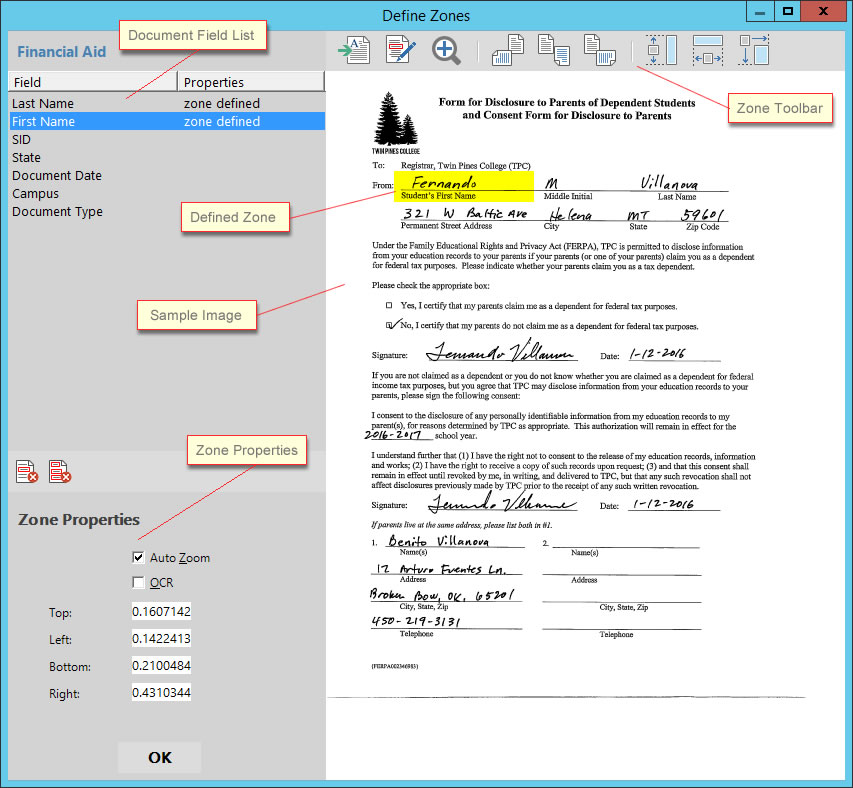

Figure 3 - Zone Definition Tool
