Input Sources

Input Sources are reusable components based on the Quillix QSX architecture that are used to provide one or more automated input streams of documents and data to the Quillix system. Input Sources are processed by the Quillix Server as part of a Server Group.

Important! Quillix Web does not require the use of an Input Source.

Adding an Input Source

Input Sources are added to Server Groups from the Servers/Input Panel in the Process Manager Application. To add an Input Source, first select the Server Group, then click on the Add Input Source button from the Input Sources Toolbar.

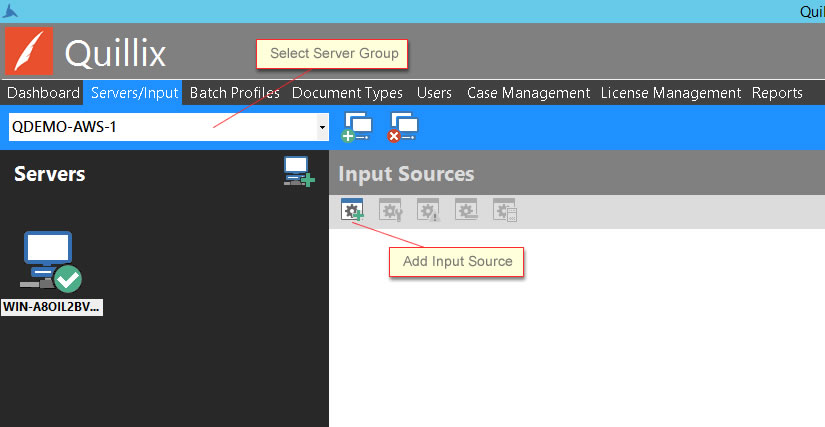

Figure 1 - Servers/Input Panel

Upon clicking the Add Input Source button, the Add Input Source Dialog will be displayed. Select the desired Input Source from the list and click OK to add the Input Source to the selected Server Group.

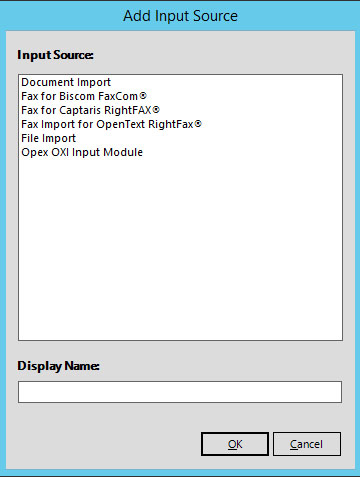

Figure 2 - Add Input Source Dialog

Configure an Input Source

Each Input Source QSX has its own settings that must be configured. Select an Input Source from the list and click on the Configure Input Source button from the Input Sources Toolbar.

Figure 3 - Configure Input Source

Other Input Source Settings

Disable - The Disable Input Source button causes the server to stop processing incoming items for the selected Input Source, leaving it's configuration settings intact.
Delete - The Delete Input Source button will remove the Input Source and all of its settings from the selected Server Group.
Isolate - The Isolate Input Source button moves the Input Source to its own Windows service, separate from Quillix Server and other Input Sources

NEXT STEP: Create a Document Type
